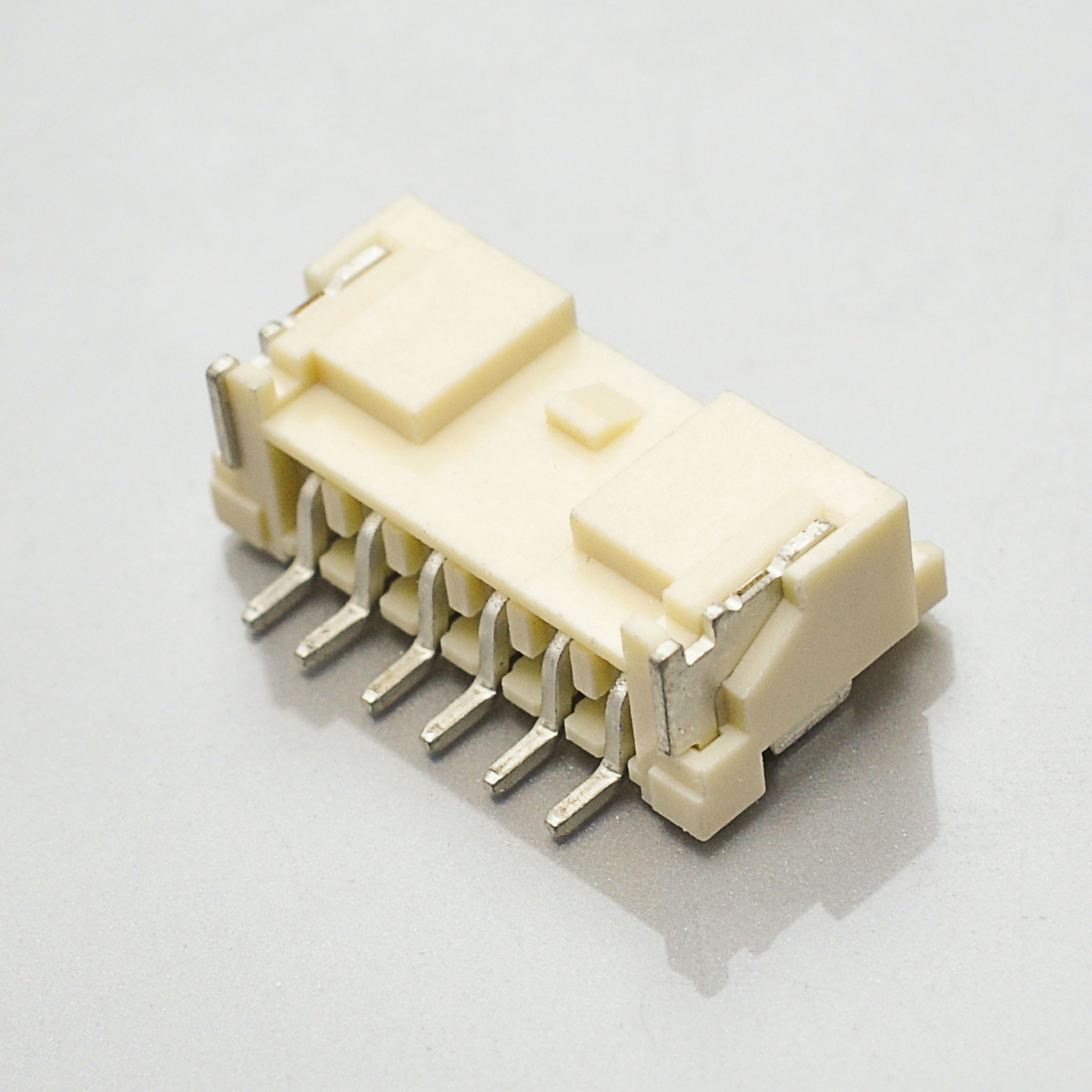

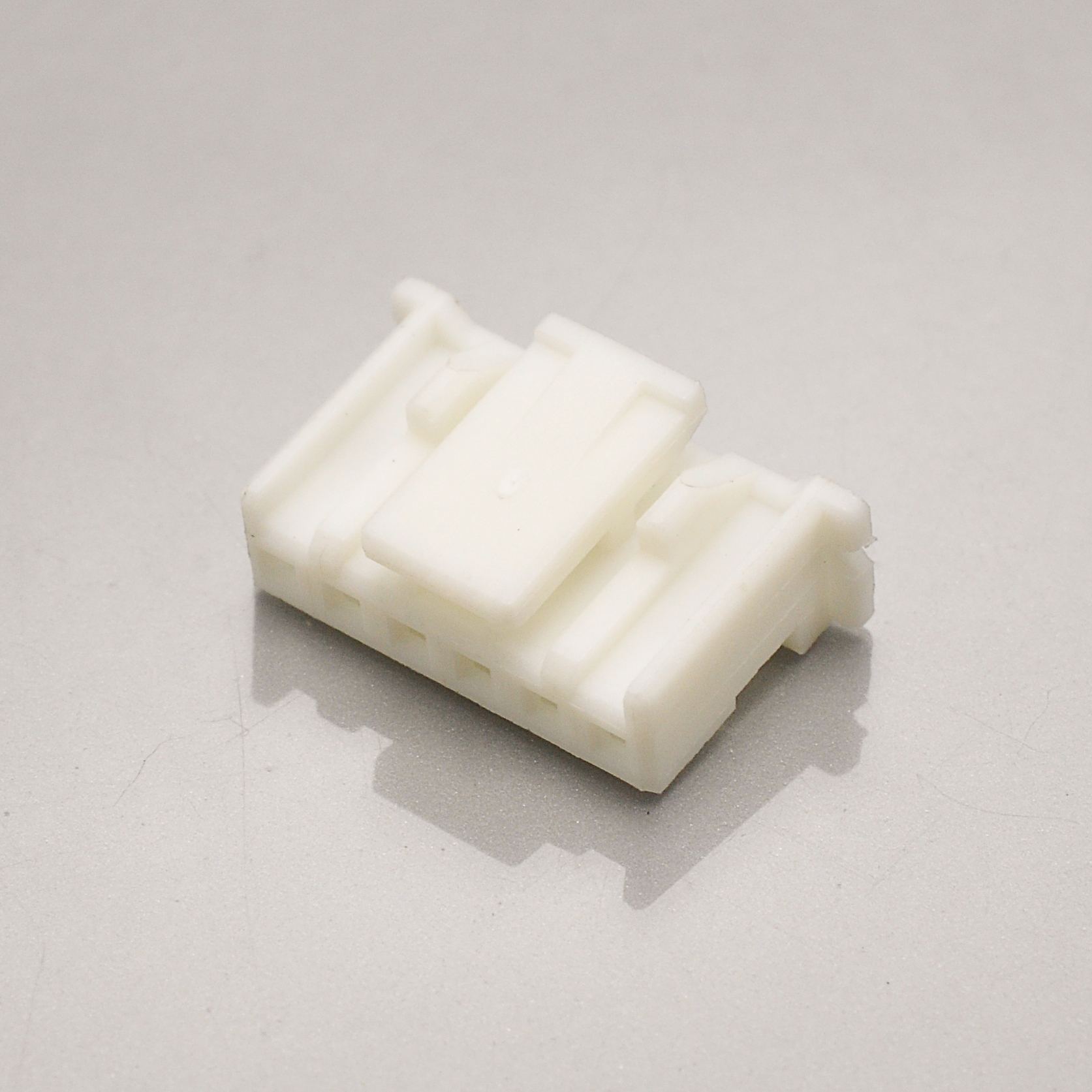

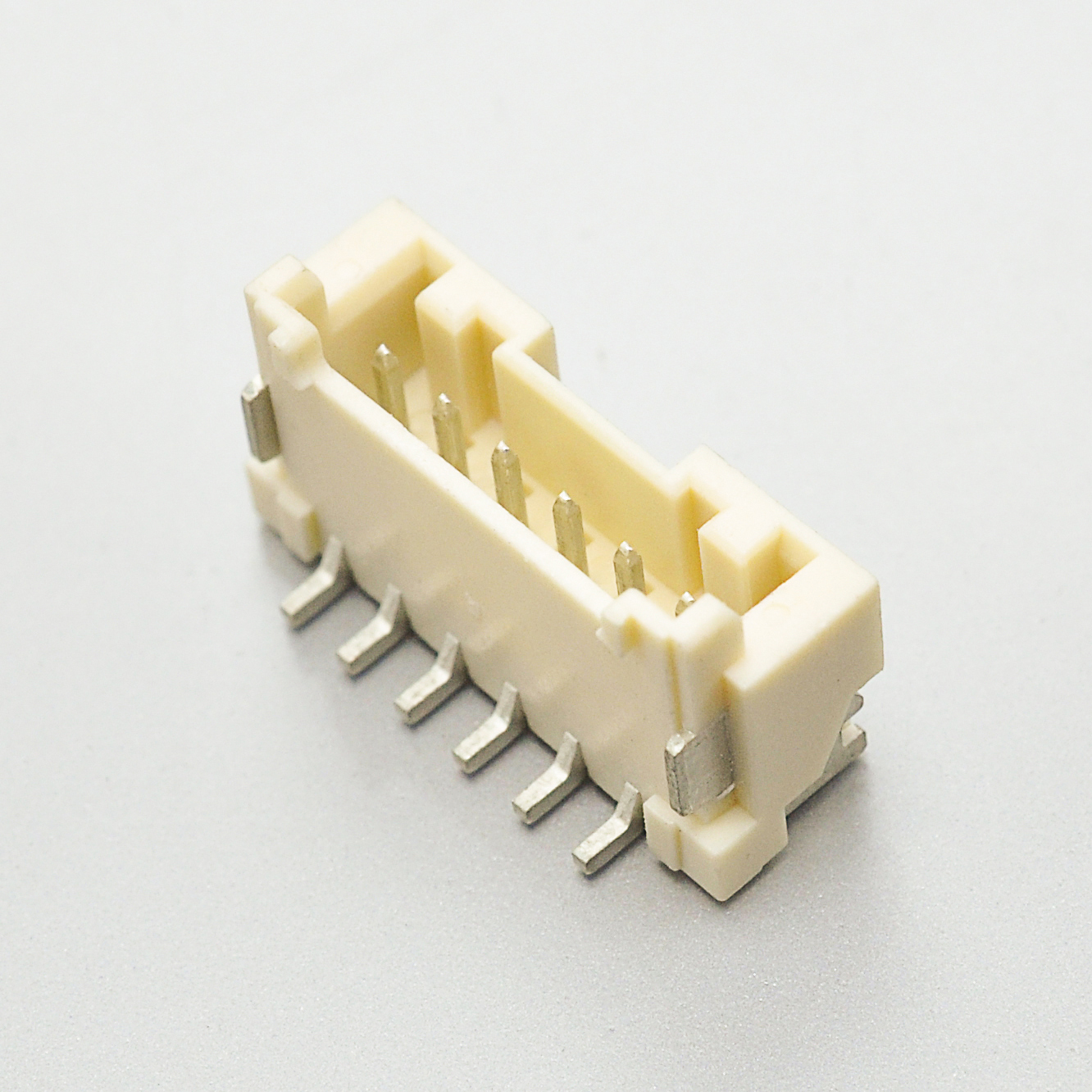

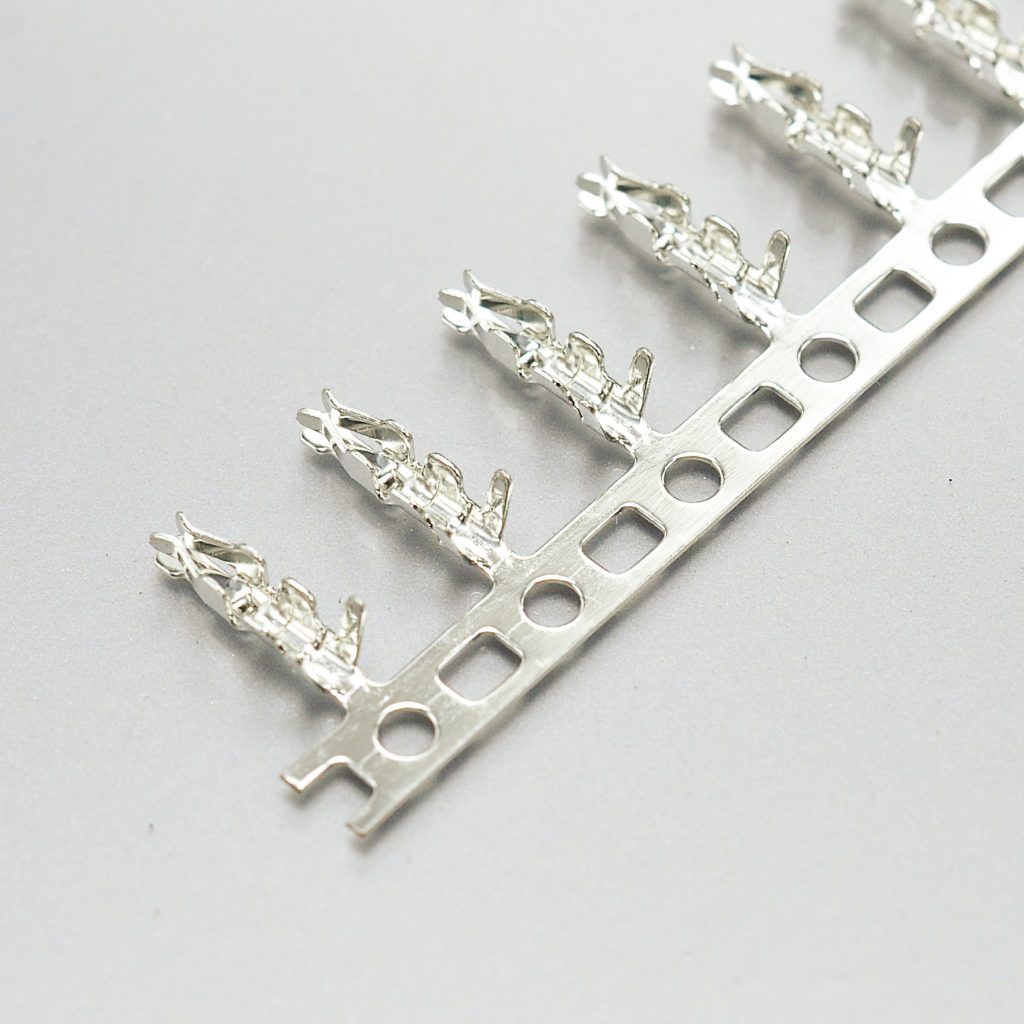

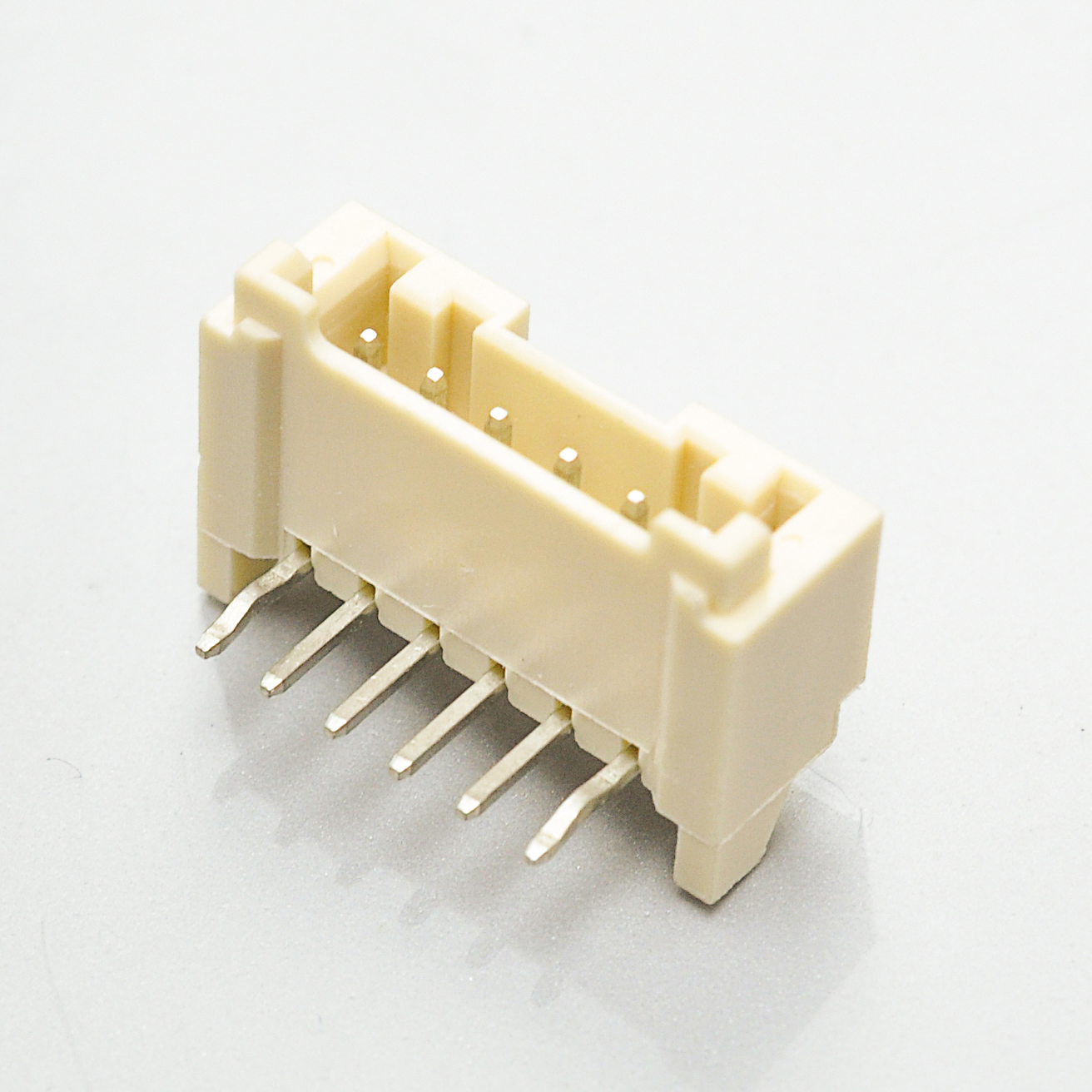

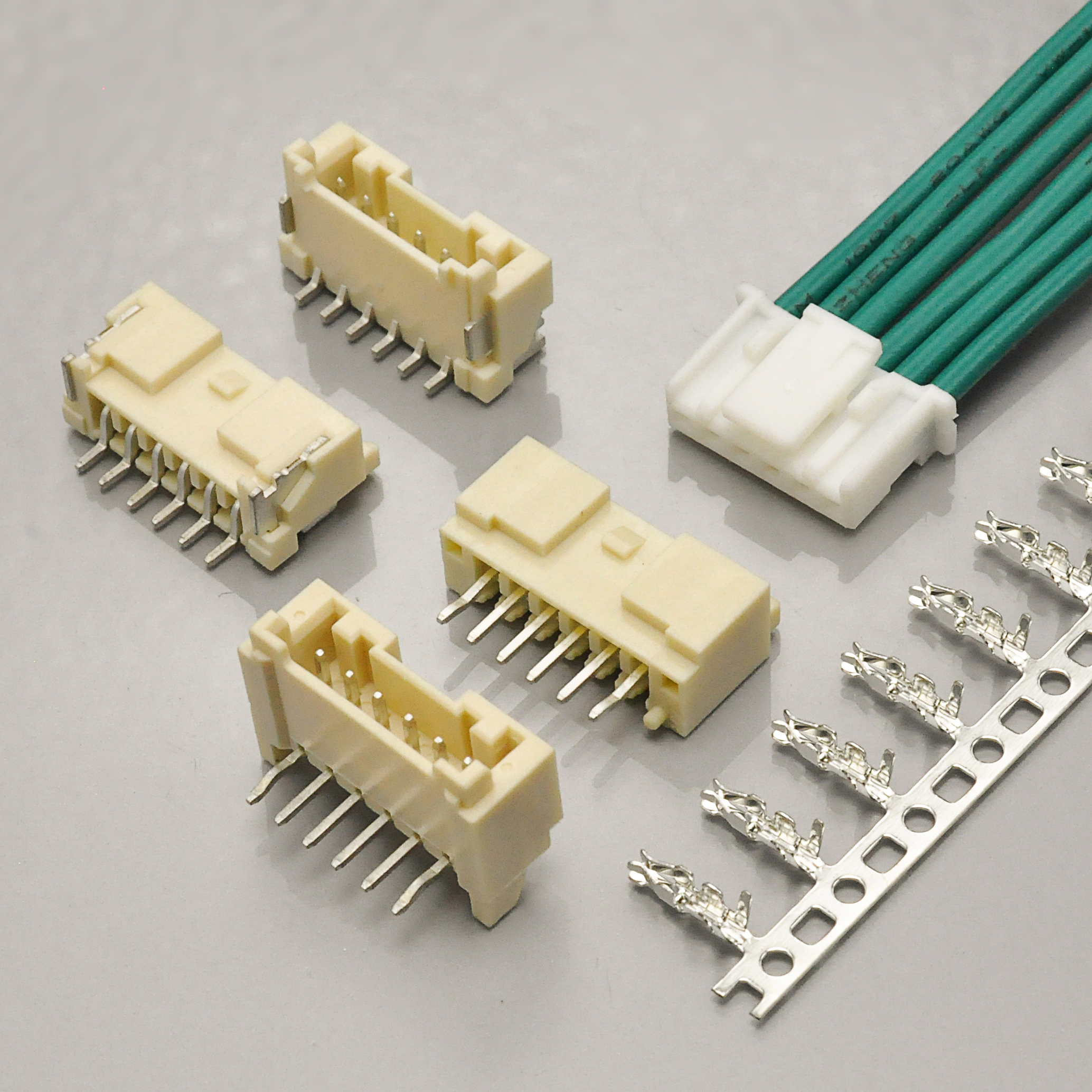

KR2014 Single Wire to Board Connector
PAP PASK PASS SPHD connectors,The 2.0 mm pitch PA family consists of the following connectors:・PA connector ・PAF connector ・PAL connector These features enabled a harness with complicated shape for the first time asa 2.0 mm pitch connector with secure locking mechanism.
| Model number: | KR2014 series |
| Pitch: | 2.0mm |
| Circuits: | 2-15pin |
| Wire AWG: | #24~#28 |
| Current: | 3A |
KR2014 Single Wire to Board Connector
Product Introducing
Select Components
Download
General Specifaction
| Material: | Phosphor/Bronze/PA66/PA9T |
| Insulation O.D: | 0.9-1.40mm MAX |
| Withstanding Voltage: | 800V AC/ minute |
| Temperature Range: | -40℃～+105℃ |
| Contact Resistance: | 20m Q/max |
| Insulation Resistance: | 1000MQ/ min |
| Product Plating: | Tin Plated Over Nickel |
