KR3960 Series KK396 3.96 Wire to Board Connector

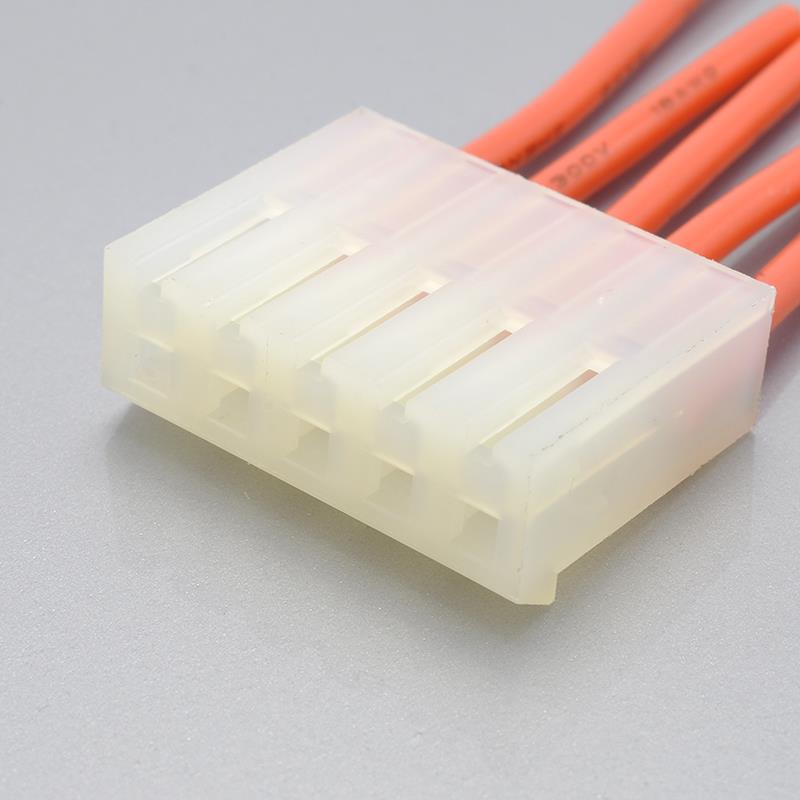

KK 3.96mm Crimp Housing, Friction Ramp, 7 Circuits, Glow-Wire Capable
| Pitch | 3.96mm |
| Circuits: | 2-7pin |
| Current: | 7A |
| Voltage: | 250V |
KR3960 Series KK396 3.96 Wire to Board Connector
Select Components
Download
General Specifaction
| Material: | Brass PA66 UL94 V2 |
| Insulation O.D | 2.50mm MAX |
| Withstanding Voltage: | 1000V AC/ minute |
| Temperature Range: | -40℃～+105℃ |
| Contact Resistance: | 15m Q/max |
| Insulation Resistance: | 100MQ/ min |
| Product Plating | Silver |
