KR2026 Series 2.00mm TPA/CPA Wire-to-Board Connector | KONNRA

A 2.00mm pitch single-row direct card edge clamping connector with 2-15 circuits, 3A/125V rating, and -40°C~+125°C automotive-grade range featuring TPA and CPA double locking mechanisms.

The KR2026 series is an advanced 2.00 mm (0.079″) pitch single-row wire-to-board direct card edge clamping connector engineered for high-vibration automotive and industrial electronic applications. Featuring an innovative edge-clamping architecture, the KR2026 connects directly onto standard 1.60 mm (±0.10 mm) PCB edge contact fingers, completely eliminating the need for board-mounted male pin headers or wafers. This direct-to-board interface reduces overall interconnect BOM costs by up to 35% and saves valuable vertical clearance above the printed circuit board.

Engineered to meet stringent automotive LV214 reliability standards, the KR2026 integrates both TPA (Terminal Position Assurance) to prevent terminal back-out and CPA (Connector Position Assurance) to guarantee foolproof secondary locking under severe vibration and thermal shock environments from -40°C to +125°C.

Pitch: 2.00mm (0.079″)
Circuits / Pins: 2 – 15 Pins (Single Row)
Current Rating: 3.0A AC/DC Max.
Voltage Rating: 125V AC/DC
Mating Interface: Direct Card Edge Clamping (PCB Thickness 1.60±0.10mm)
Locking Assurance: Dual Assurance (TPA + CPA Integrated)
Operating Temp: -40°C ~ +125°C (Automotive Grade)

Key Specifications

Parameter Specification
Pitch 2.00mm (0.079″)
Circuits / Pins 2 – 15 Pins (Single Row)
Current Rating 3.0A AC/DC Max.
Voltage Rating 125V AC/DC
Mating Interface Direct Card Edge Clamping (PCB Thickness 1.60±0.10mm)
Locking Assurance Dual Assurance (TPA + CPA Integrated)
Operating Temp -40°C ~ +125°C (Automotive Grade)

Engineering Selection Guidance

Review pitch, circuit count, current and voltage, wire size, mating interface, retention feature and operating environment against your project requirements.

Project Review Information

Send the part number, mating component requirements, wire size, application environment, BOM or drawing, and target quantity for engineering review.

Validation Boundary

Final connector selection and any cross-reference decision require project-specific review and validation.

Request Technical Information

Send your BOM or drawing for project review or request samples or technical information.

KR2026 Series 2.00mm TPA/CPA Wire-to-Board Connector | KONNRA


    Select Components

    No results found.
    HousingTerminalWafer

    Download

    Specification

    Package Specification

    General Specifaction

    Housing / Cover Material: PBT (UL 94V-0, Natural / White)
    Terminal Contact Material: C7025 High-Performance Copper Alloy
    TPA / CPA Material: PA66 (UL 94V-0, Black / Gray)
    Terminal Plating: Bright Tin Plated Over Nickel
    Mating PCB Thickness: 1.60 ± 0.10 mm (Standard FR-4 PCB Edge)
    Applicable Wire Gauge: 0.35 mm² (AWG 22#), 0.22 mm² (AWG 24#)
    Applicable Wire Insulation O.D.: 1.40 mm Max.
    Current Rating: 3.0A AC/DC
    Voltage Rating: 125V AC/DC
    Operating Temperature: -40°C ~ +125°C
    Contact Resistance: Initial ≤ 10mΩ Max. (After test ≤ 20mΩ)
    Insulation Resistance: ≥ 1000MΩ Min. (500V DC)
    Dielectric Withstanding Voltage: 500V AC / 1 minute (No breakdown / flashover)
    Terminal Retention Force: ≥ 20N Min. (Without TPA) / ≥ 50N Min. (With TPA)
    Connector Lock Strength: ≥ 50N Min.
    Testing & Compliance: LV214 Automotive Standard, RoHS & REACH Compliant

    Circuits & Dimensions (Drawing No. 2026H101-A-S / 2026H102-A-S)

    Circuits 180° Housing P/N 90° Housing P/N Dim A (mm) Dim B (mm) Dim C (mm)
    2P H2026V1022401AXX H2026R1022401AXX 2.00 18.26 12.00
    3P H2026V1032401AXX H2026R1032401AXX 4.00 20.26 14.00
    4P H2026V1042401AXX H2026R1042401AXX 6.00 22.26 16.00
    5P H2026V1052401AXX H2026R1052401AXX 8.00 24.26 18.00
    6P H2026V1062401AXX H2026R1062401AXX 10.00 26.26 20.00
    7P H2026V1072401AXX H2026R1072401AXX 12.00 28.26 22.00
    8P H2026V1082401AXX H2026R1082401AXX 14.00 30.26 24.00
    9P H2026V1092401AXX H2026R1092401AXX 16.00 32.26 26.00
    10P H2026V1102401AXX H2026R1102401AXX 18.00 34.26 28.00
    11P H2026V1112401AXX H2026R1112401AXX 20.00 36.26 30.00
    12P H2026V1122401AXX H2026R1122401AXX 22.00 38.26 32.00
    13P H2026V1132401AXX H2026R1132401AXX 24.00 40.26 34.00
    14P H2026V1142401AXX H2026R1142401AXX 26.00 42.26 36.00
    15P H2026V1152401AXX H2026R1152401AXX 28.00 44.26 38.00

    * Note: Designed for 1.60 ± 0.10 mm PCB edge card thickness. Available in 180° vertical and 90° right-angle orientations with CPA_L and CPA_R secondary position locks.

    Overview

    The KONNRA KR2026 series is an industry-leading 2.00 mm (0.079″) pitch single-row wire-to-board card edge clamping connector engineered specifically for automotive subsystems, battery management systems (BMS), industrial robotics, and compact electronic devices. By mating directly onto standard 1.60 mm (±0.10 mm) PCB edge gold fingers, the KR2026 eliminates the need for male pin headers or SMT wafers on the PCB, delivering a zero-header interconnect solution that significantly reduces total bill of materials (BOM) costs, assembly time, and vertical profile requirements.

    To meet the rigorous durability and anti-vibration demands of modern automotive electronics, the KR2026 is developed and tested in accordance with the automotive LV214 specification. The connector incorporates dual mechanical safeguards: a Terminal Position Assurance (TPA) component that increases terminal retention force to ≥50N, and a robust Connector Position Assurance (CPA) lock (with L and R modular variants) that prevents accidental unlatching under intense shock and continuous vehicle vibration. Available in both 180° straight and 90° right-angle configurations from 2P to 15P, the KR2026 provides ultimate routing flexibility for tight packaging environments.

    Key Advantages of KR2026 Series

    • Zero-Header Direct PCB Clamping (Cost & Space Savings): Clamps directly onto 1.60mm PCB edge fingers without requiring mating male pin headers or surface-mount wafers. Eliminates header purchasing, surface-mount soldering, and wave soldering inspection processes, reducing total interconnect costs by up to 35%.
    • Dual Locking Assurance (TPA + CPA per LV214):
      • TPA (Terminal Position Assurance): Guarantees complete terminal seating into housing cavities and provides a secondary mechanical latch that boosts terminal pull-out retention from 20N to over 50N, totally eliminating terminal back-out issues.
      • CPA (Connector Position Assurance): Rugged sliding CPA lock ensures full mating engagement with the PCB edge. 8P and larger circuits utilize dual-side (CPA-L & CPA-R) locks to ensure zero micro-disconnection (≤1μs discontinuity) during severe automotive vibration.
    • High-Conductivity C7025 Copper Alloy Terminals: Precision-stamped from premium C7025 copper alloy with tin-over-nickel plating, delivering ultra-low contact resistance (≤10mΩ initial), exceptional spring fatigue resistance, and 3.0A current capacity across -40°C to +125°C.

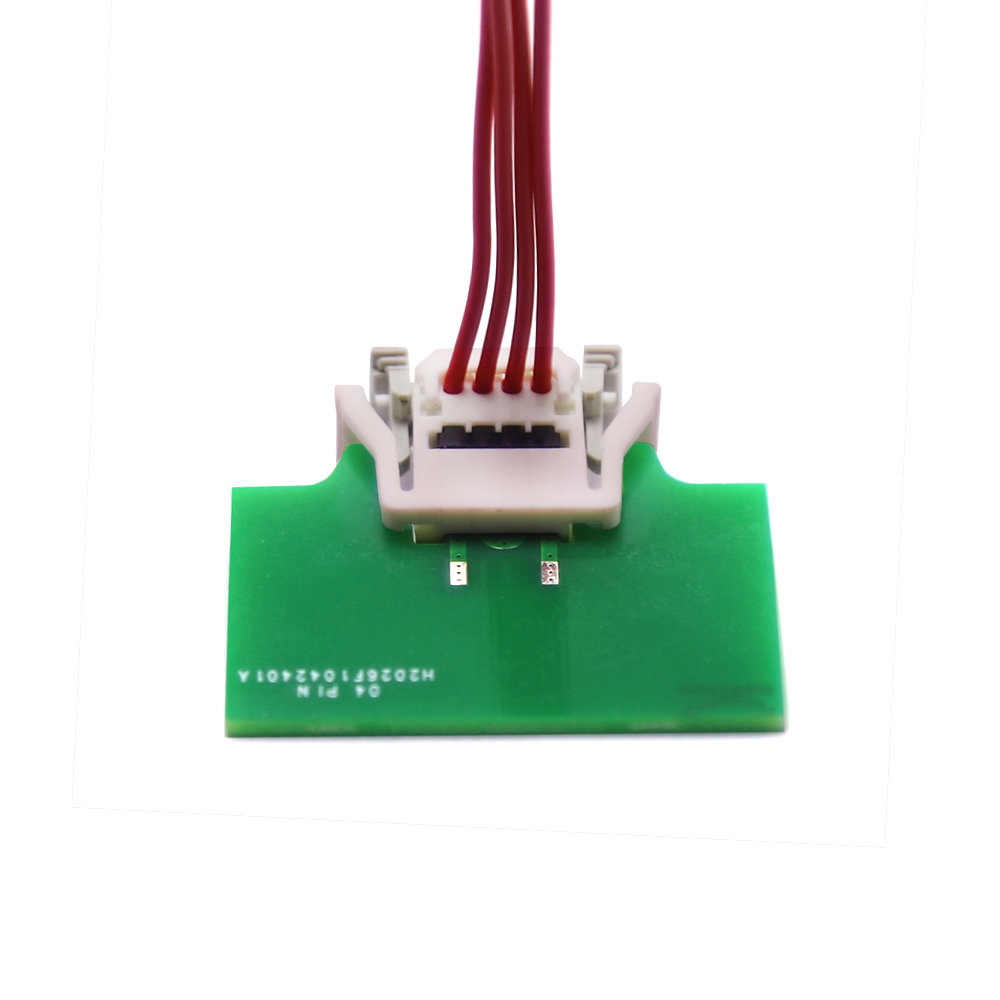

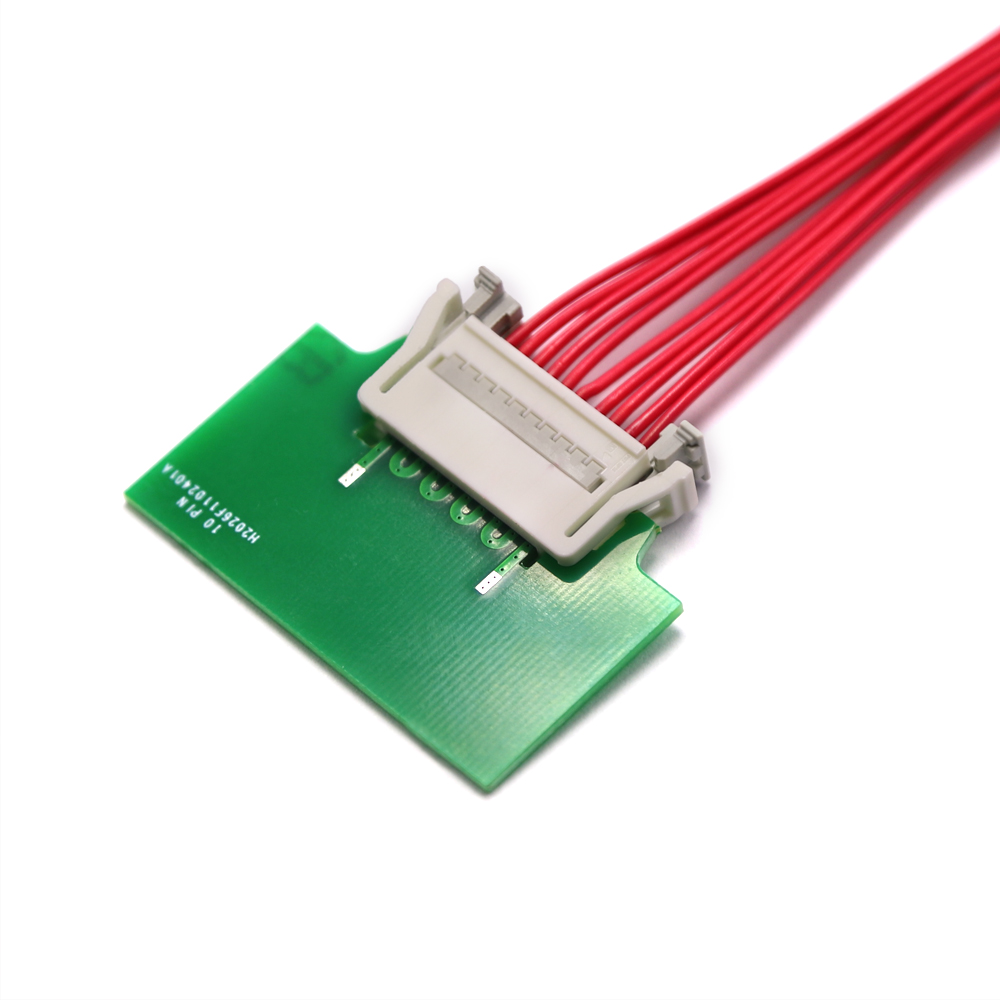

    • 180° Vertical and 90° Right-Angle Versatility: Full product line from 2P to 15P available in both 180° straight (H2026V) and 90° low-profile right-angle (H2026R with protective rear cover) for optimum wire dress and space utilization.
    • Automotive-Grade Environmental Ruggedness: Molded from flame-retardant PBT and PA66 (UL 94V-0), meeting stringent LV214 requirements for thermal shock, 120-hour high-temperature aging (125°C), salt spray, and industrial gas corrosion.

    Target Industries and Application Scenarios

    The KR2026 series 2.00mm wire-to-board card edge connector is widely deployed across leading automotive tier-1 suppliers, battery manufacturers, and industrial automation developers:

    • Automotive Electronics & Lighting Systems:
      • LED Headlight, Taillight, and DRL daytime running light control modules (proven deployment in tier-1 automotive lighting OEMs)
      • Automotive HVAC climate control switch panels and blower regulators
      • Electronic control units (ECU), body control modules (BCM), and door/window switch assemblies
      • Automotive sensor interfaces and camera module interconnects
    • New Energy & Battery Management Systems (BMS):
      • Energy storage system (ESS) cell voltage and temperature monitoring sampling wire harnesses
      • EV battery pack auxiliary control boards and cell-balancing module card edge links
    • Industrial Automation & Smart Metering:
      • Industrial robotic controller boards, modular PLC I/O expansion slots
      • Servo drives, inverter control boards, and power supply management units
      • Smart electricity and gas metering terminal boards
    • High-End Smart Home Appliances: Inverter compressor driver boards, premium washing machine display modules, and HVAC indoor/outdoor controller interconnects.

    Application

    The KR2026 series 2.00mm wire-to-board card edge connector is widely deployed across leading automotive tier-1 suppliers, battery manufacturers, and industrial automation developers:

    • Automotive Electronics & Lighting Systems:
      • LED Headlight, Taillight, and DRL daytime running light control modules (proven deployment in tier-1 automotive lighting OEMs)
      • Automotive HVAC climate control switch panels and blower regulators
      • Electronic control units (ECU), body control modules (BCM), and door/window switch assemblies
      • Automotive sensor interfaces and camera module interconnects
    • New Energy & Battery Management Systems (BMS):
      • Energy storage system (ESS) cell voltage and temperature monitoring sampling wire harnesses
      • EV battery pack auxiliary control boards and cell-balancing module card edge links
    • Industrial Automation & Smart Metering:
      • Industrial robotic controller boards, modular PLC I/O expansion slots
      • Servo drives, inverter control boards, and power supply management units
      • Smart electricity and gas metering terminal boards
    • High-End Smart Home Appliances: Inverter compressor driver boards, premium washing machine display modules, and HVAC indoor/outdoor controller interconnects.
