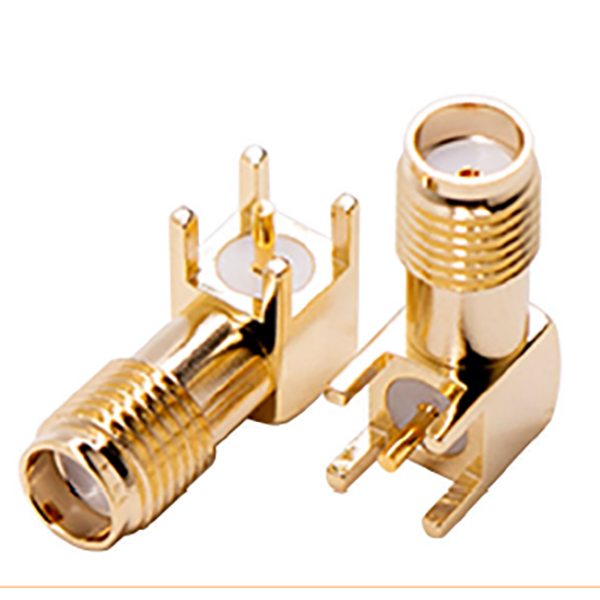

RF connector-SMA175

90度SMA母头for PCB
Impedance: 50 Ω
WorkingFrequency:0~6GHz
V.S.W.R.: ≦ 1.6
Working Voltage: 335V max
Insulation Resistance: 5000 MΩ
Mating Cycles:≧500
Working Temperature Range:
– 65 ℃ to +165 ℃
