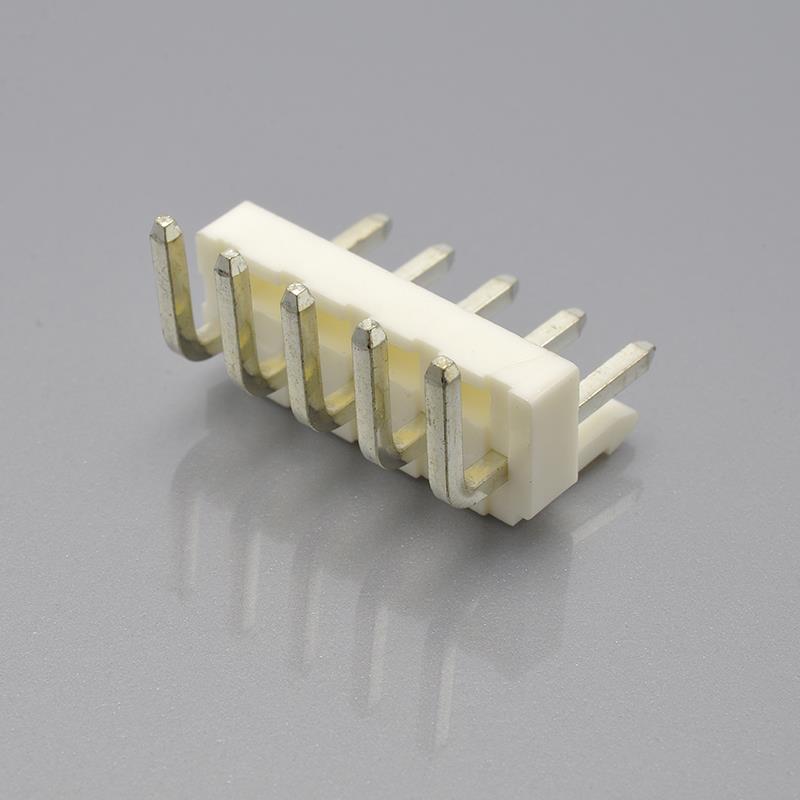

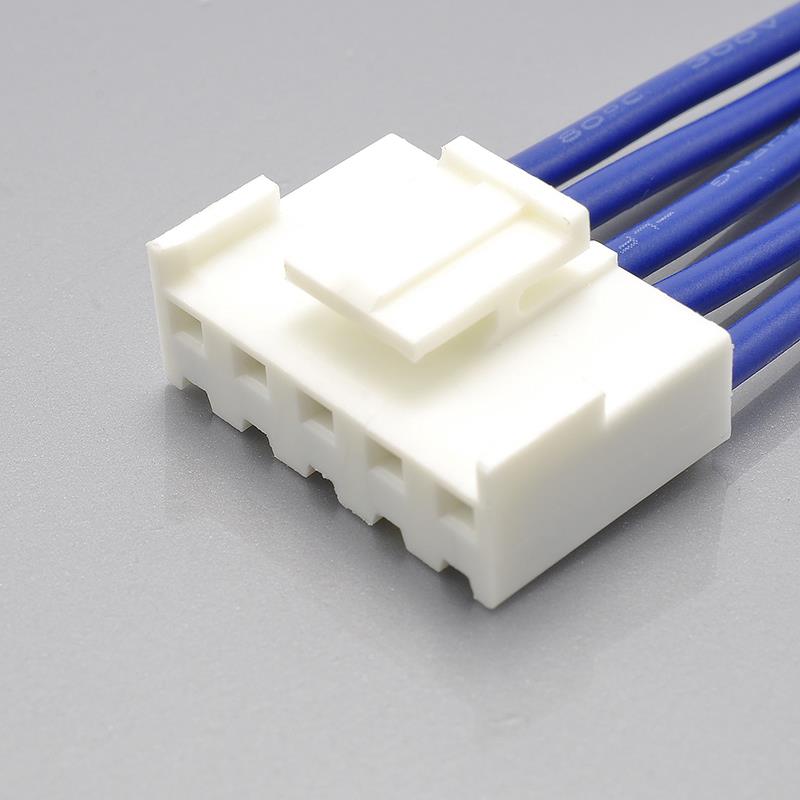

KR3961 Series VH 3.96 DIP Wire to Board Connector
VH connector, This small, field-proven connector for PC boards is reliable and has a large current carrying capacity. It can be used with a wide variety of signal, power supply, and output circuits that appear in consumer electronic products.
| Pitch | 3.96mm |
| Circuits: | 2-9pin |
| Current: | 7A |
| Voltage: | 250V |
KR3961 Series VH 3.96 DIP Wire to Board Connector
Select Components
Download
General Specifaction
| Material: | Brass PA66 UL94 V-0 |
| Insulation O.D | 2.80mm MAX |
| Withstanding Voltage: | 1500V AC/ minute |
| Temperature Range: | -40℃～+105℃ |
| Contact Resistance: | 20m Q/max |
| Insulation Resistance: | 1000MQ/ min |
| Product Plating | Tin over Nickel |
