KR0800 Series SUR IDC Connector
0.8mm pitch wire-to-board insulation displacement connector.
*Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment.
| Pitch | 0.8mm |
| Circuits: | 2-20pin |
| Current: | 0.5A |
| Voltage: | 30V |
KR0800 Series SUR IDC Connector
Select Components
Download
General Specifaction
| Material: | PA66/LCP/UL94/Phosphor Bronze |
| Insulation O.D | 0.8mm |
| Withstanding Voltage: | 200V AC/ minute |
| Temperature Range: | -40℃～+105℃ |
| Contact Resistance: | 20m Q/max |
| Insulation Resistance: | 100MQ/ min |
| Product Plating | Gold over Nickel |
Overview

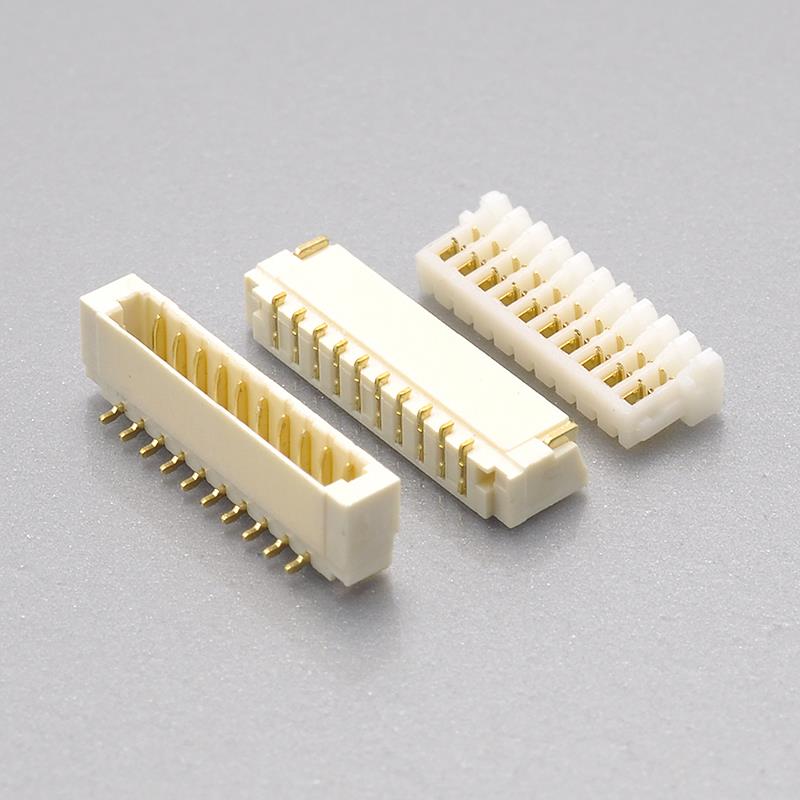

The KR0800 series connectors are high-performance wire-to-board connectors. With a pitch of 0.8mm, this series of connectors has realized the world’s first miniaturization of board-to-wire connections. The side-mounted type has a board package height of 1.75 mm and a depth of 3.9 mm, while the top-mounted type has a board package height of 3.9 mm and a depth of 2.2 mm. The KR0800 Series connectors take up 34% less space on the board (side-mounted type) than common 1.0 mm pitch connectors, significantly improving the space utilization of electronic equipment. With the advantages of small size, light weight, reliable contact and easy plugging and unplugging, this series of connectors is widely used in automotive, communications, consumer electronics and other fields.
Advantages
- Compact Design
The KR0800 series connectors feature a 0.8mm pitch design, which is more compact than conventional 1.0mm pitch connectors, significantly reducing the footprint on the board.
- High Reliability
KR0800 series connectors with its exquisite manufacturing technology and strict quality control to ensure that the connector has excellent electrical and mechanical properties, to ensure the stability and reliability of the connection.
- Easy Installation
KR0800 series connectors provide two types of mounting methods: side-mounted and top-mounted, which are suitable for different board layouts. Its simple design makes the installation process easy and fast, improving productivity.
- Versatile Specifications
KR0800 series connectors are available in a wide range of specifications and models, including different pin counts, arrangements, and package types to meet the needs of different application scenarios.
- Wide range of applications
Due to its excellent performance and reliability, KR0800 series connectors are widely used in automotive, communication, consumer electronics, industrial control and other fields, becoming one of the indispensable connectors in electronic equipment.
