Wiring harnesses are essential components in electrical and electronic systems, serving as the backbone for transmitting power and signals between devices. Whether it’s in automobiles, industrial machinery, medical equipment, or consumer electronics, a well-designed wiring harness ensures reliability, safety, and optimal performance. However, designing wiring harnesses that meet specific equipment requirements involves much more than connecting wires. It requires careful consideration of current flow, insulation, durability, and compliance with industry standards.
What Are Wiring Harnesses?
A wiring harness is a structured assembly of wires, connectors, terminals, and other components, designed to transmit electrical power and signals within equipment. Instead of loose wires running individually, a wiring harness groups them into a compact and organized form, making installation easier and reducing the risk of damage, shorts, or misconnection.
The design of a wiring harness must account for the specific requirements of the equipment it serves, including:
Voltage and current ratings
Mechanical durability
Environmental resistance (e.g., heat, moisture, or chemicals)
Safety and compliance with industry regulations
Key Points in Designing Wiring Harnesses
1. Current Carrying Capacity
The first consideration in designing wiring harnesses is the current carrying capacity of the wires. Selecting the wrong wire gauge can lead to overheating, voltage drops, or even fire hazards.
Wire Gauge: The wire diameter (or gauge) must match the current requirements of the equipment. Larger currents require thicker wires to prevent excessive heat buildup.
Material Selection: Copper is the most commonly used conductor due to its excellent conductivity, flexibility, and affordability. For weight-sensitive applications, aluminum may be used, but it requires proper termination techniques.
Voltage Drop: Consider the length of the wire and ensure that voltage drops across the wire are within acceptable limits for the equipment.
Collaborating with a wire harness processing factory ensures precision in selecting the correct wire gauge and material for specific applications.
2. Insulation and Protection
Proper insulation is critical to prevent short circuits, electrical leakage, or damage to the wires in harsh environments.
Insulation Material: Choose insulation materials that are resistant to heat, chemicals, and mechanical wear. Common materials include PVC, Teflon, and silicone.
Temperature Ratings: Ensure the insulation can withstand the operating temperature of the equipment, especially in automotive or industrial applications.
Environmental Resistance: For outdoor or industrial environments, additional protection such as corrugated tubing, heat shrink, or braided sleeves may be required to shield wires from abrasion, water, or dust.
Partnering with experienced manufacturers of wiring harnesses ensures access to high-quality materials that meet specific insulation requirements.

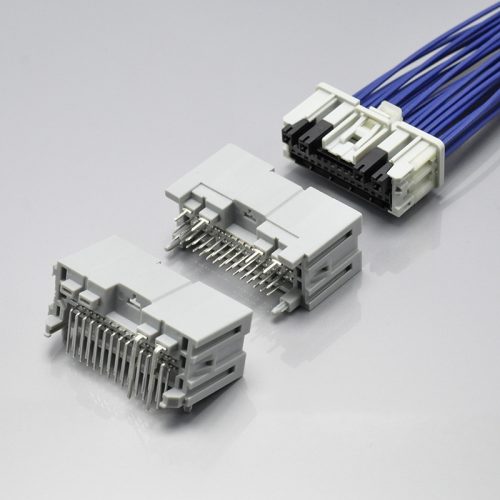

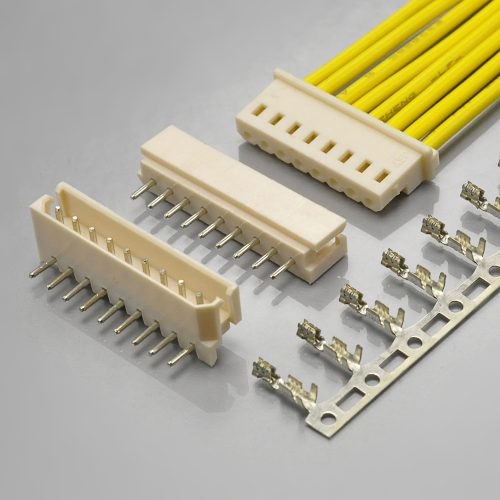

3. Connector Selection
Connectors are a critical component of wiring harnesses, providing secure and reliable connections between wires and equipment. Poor-quality connectors can result in loose connections, signal loss, or system failures.
Connector Type: Select connectors based on the type of signals (power, data, or both) and environmental factors such as vibration, moisture, or chemical exposure.
Pin Configuration: Ensure the number of pins and the arrangement matches the equipment’s requirements.
Locking Mechanisms: For high-vibration environments, use connectors with locking mechanisms to prevent accidental disconnection.
4. Mechanical Design
The physical layout of a wiring harness affects its durability, ease of installation, and resistance to mechanical stress.
Routing and Bundling: Design the harness to minimize sharp bends or kinks that could damage the wires. Use wire ties or clamps to secure bundles and prevent movement.
Length and Flexibility: Ensure the harness has sufficient length and flexibility to accommodate the equipment’s movements without stretching or stressing the wires.
Strain Relief: Add strain relief features at connection points to reduce stress on the wires and connectors.
A reliable wire harness processing factory can assist in creating harnesses with precise mechanical designs tailored to the equipment.
5. Testing and Validation
Testing is an integral part of the design process to ensure that the wiring harness meets performance and safety standards.
Continuity Testing: Verify that all wires are correctly connected and capable of transmitting signals without interruption.
Insulation Resistance Testing: Check the effectiveness of the insulation to prevent leakage or short circuits.
Durability Testing: Test the harness under simulated environmental conditions, such as extreme temperatures, vibration, and moisture, to ensure reliability.
Why Work with Professional Manufacturers of Wiring Harnesses?
Choosing the right manufacturers of wiring harnesses is critical for ensuring the reliability and longevity of your equipment. Here’s why partnering with professionals is a smart choice:
Access to High-Quality Materials: Reputable manufacturers source premium wires, connectors, and insulation materials that meet industry standards.
Expertise in Design and Testing: Professional manufacturers have in-depth knowledge of industry requirements and can assist in designing and testing custom harnesses.
Scalability and Cost Efficiency: Whether you need small batches or large-scale production, manufacturers can scale their operations to meet your needs while optimizing costs.
Conclusion
Designing wiring harnesses that meet specific equipment requirements is a complex process that demands attention to detail, from current carrying capacity to insulation and mechanical design. By following best practices in wire selection, insulation, connector choice, and testing, you can ensure your wiring harness delivers reliable and safe performance.
For businesses seeking high-quality solutions, working with a reliable wire harness processing factory or trusted manufacturers of wiring harnesses is essential. These partners bring expertise, advanced technology, and a commitment to quality, ensuring your wiring harnesses meet the highest standards of performance and safety.
Whether you’re designing harnesses for industrial machinery, vehicles, or consumer electronics, investing in proper design and professional manufacturing will pay off in the form of reliable and durable equipment.
